Analogue Insulation Tester Metal Body

• Capacity
• 500V, 1000V, 2500V, 5000V (depends on model)

• Circulation System
• Manual operation, not applicable

• Controller System
• Analogue pointer display with selector switch

• Exterior Material
• Powder-coated steel (Metal Body)

• External Size
• Metal body dimension approx. 170 x 120 x 95 mm

• Insulation Material
• High-grade electrical insulation

• Interior Material
• Electrical-grade insulation and metal components

• Internal Size
• Compact hand-held design

• Temperature Range
• Operating: 0C to 40C

• Theory
• Other, Electronic Measurement

• Type
• Other , Analogue Insulation Tester

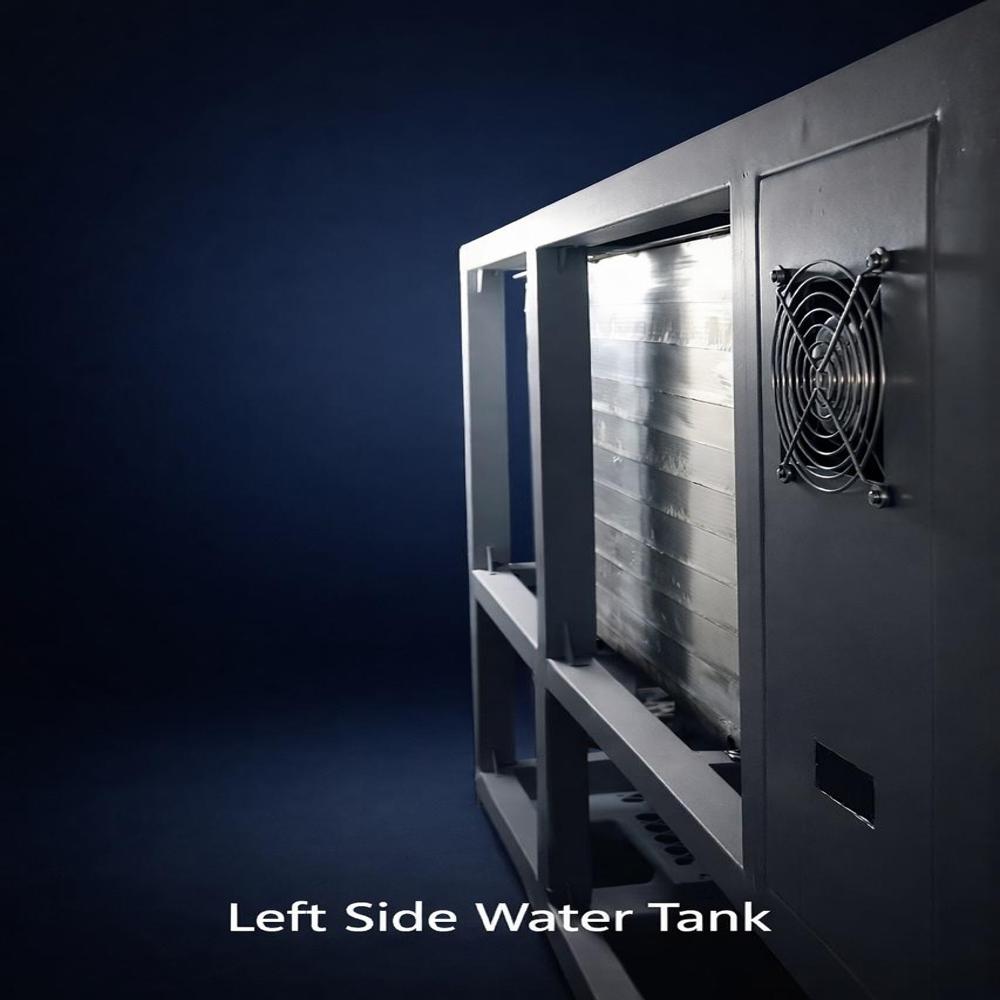

• Capacity
• 40 Liters

• Circulation System
• Integrated Recirculation Pump

• Controller System
• Digital Temperature and Water Level Controller

• Exterior Material
• MS Powder Coated

• External Size
• 450 x 350 x 450 mm

• Heating System
• Electric Immersion Heater

• Humidifying System
• Automatic Humidifier (Optional)

• Humidity Range
• 30% - 95% RH (with optional system)

• Insulation Material
• Polyurethane Foam

• Interior Material
• Stainless Steel 304

• Internal Size
• 400 x 300 x 370 mm

• Temperature Range
• Ambient to 90C

• Theory
• Other, Water Storage and Circulation

• Type
• Other , Left Side Water Tank

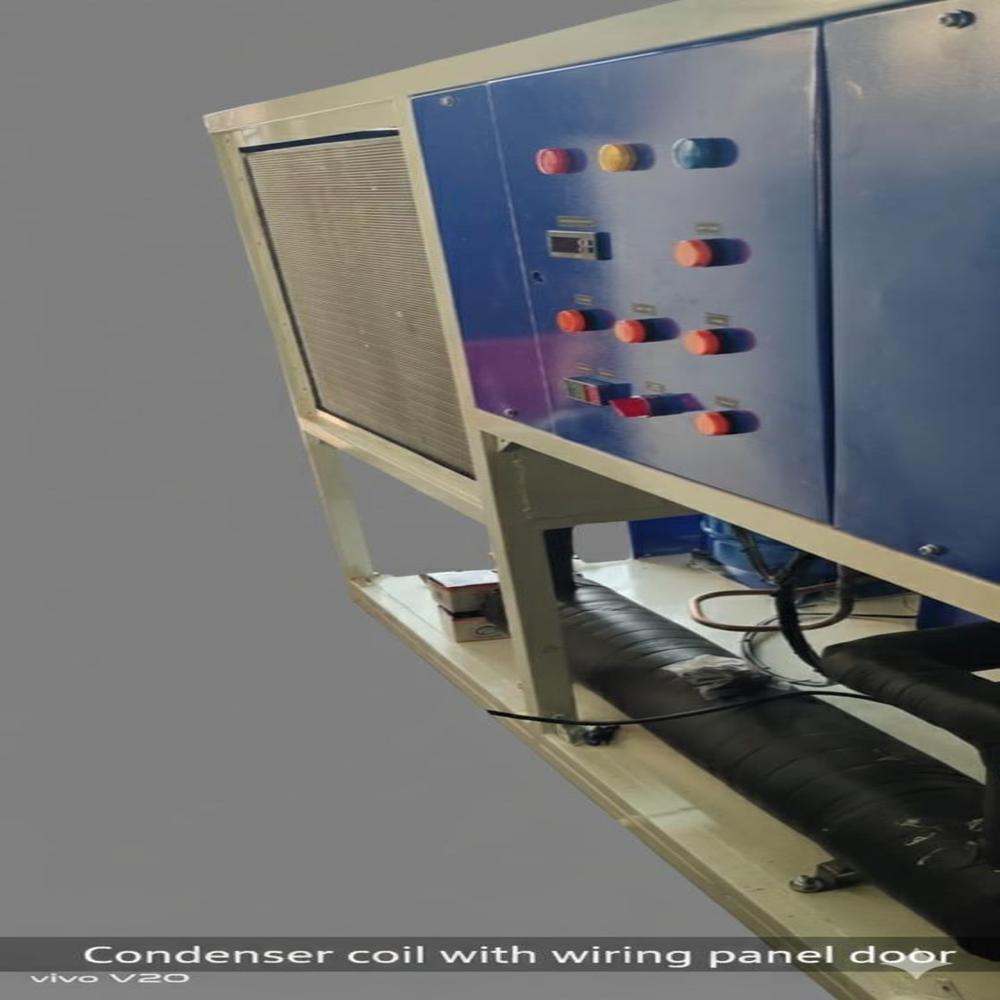

• Capacity
• Custom/As required

• Circulation System
• Mechanical Forced Air Circulation

• Controller System
• Electrical Panel Integration, Wired Door Panel

• Cooling System
• Refrigerant-based (Copper or Aluminum Tubing)

• Dehumidifying System
• Operates via Cooling

• Exterior Material
• Powder Coated Steel / Galvanized Steel

• External Size
• Dependent on Model/Design

• Heating System
• N/A for Condenser Coil

• Humidifying System
• N/A for Condenser Coil

• Insulation Material
• PUF or Thermally Insulated Panel around Housing

• Interior Material
• Copper or Aluminum Fins and Tubing

• Internal Size
• Dependent on Model/Design

• Temperature Range
• Operation range: -20C to +60C

• Theory
• Other, Heat Exchange

• Type
• Other , Condenser Coil with Wiring Panel Door
